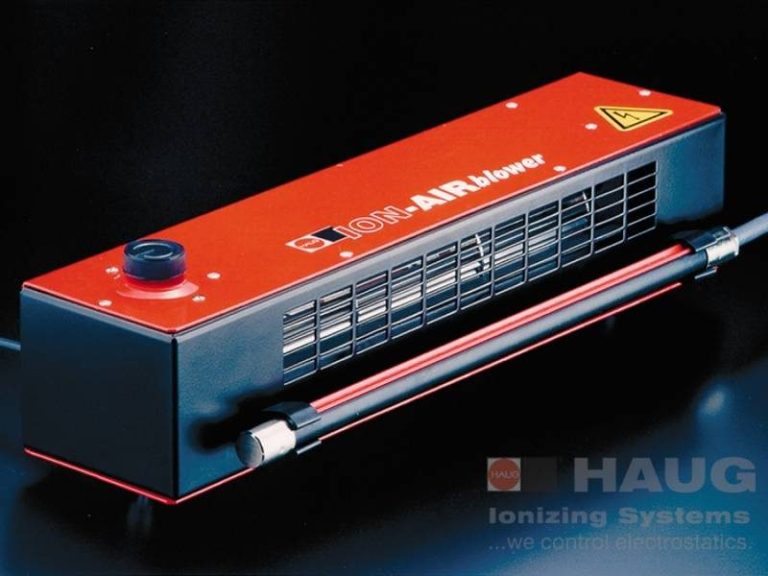

Ion Air Blower
HAUG, Static Control, Products, Ion Air Blower, Air Knife, High Voltage Power Pack Transformers, Ionizing Air GunIon Air Blower from Haug Static Control is based on the concept of a proven ionization technique. Negative and positive ions are added to the air flow produced by a cross-flow blower. the air flow hence becomes conductive and is able to eliminate electrostatic surface charges on non-conductive material.

The Ion Air Blower operates on a low pressure priciple and does not require costly compressed air. the power supply, which is required to feed the Ionizing Bar with high voltage, also operates on a low energy consumption level. this makes the Ion Air Blower a very efficent Ionizing system, especially for applications where constant Ionization is required.

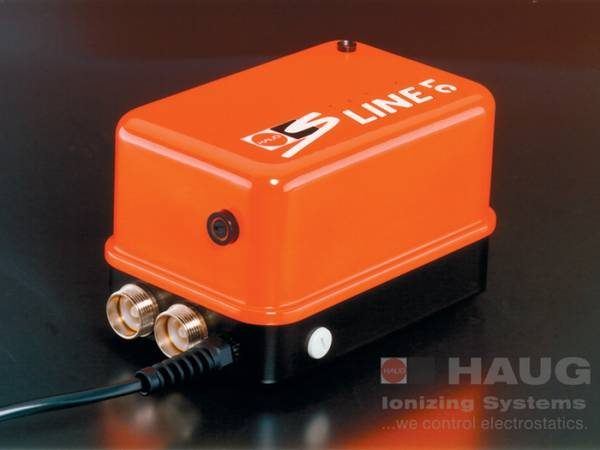

High Voltage Power Pack Transformers
HAUG, Static Control, Products, Ion Air Blower, Air Knife, High Voltage Power Pack Transformers, Ionizing Air GunEN-C type High Voltage Power Pack Transformers from Haug Static Control are used to supply HAUG ionizing units. The integrated high-voltage section transforms the applied mains voltage to approx. 7,000 to 8,000 volts. The unit is equipped qith two or four high-voltage terminals. Readiness for service is indicated by an integrated pilot lamp.

High Voltage Power Pack Transformers are equipped with the first modular-type high-voltage transformer. It consists of three main modules, all of which can be replaced individually.

With this new development, HAUG is going down a road which is technologically logical and consistent with ecological principles.



Ionizing Air Gun RI-LG "Light Gun"
HAUG, Static Control, Products, Ion Air Blower, Air Knife, High Voltage Power Pack Transformers, Ionizing Air Gun
Ionizing Air Gun from Haug Static Control has its name with good reason: this ionizing device, with its service friendly handling, is a peerless innovation in the field of elimination of dust and charges. Heavy-duty users and women greatly appreciate its lightweight.

This new technique is based on the neutralization of "spot charges" by means of bipolar ions. The head of the device is enclosed by a sheet metal shield, which serves both as mechanical protection and counter-electrode. Due to the special shape of this shield, bypass channels are created, which assist an efficent six-channel blowing nozzle by stabilizing the airflow.



Air Knife
HAUG, Static Control, Products, Ion Air Blower, Air Knife, High Voltage Power Pack Transformers, Ionizing Air Gun The Air Knife from Haug Static Control belongs to the group of air gates. As the name already indicates, these are ionizers which are supported by air flows. The effectiveness of the Air Knife can be explained by the special design of the air discharge nozzle which creates the so-called “coanda effect”.

The Coanda Effect
In contrast to full jet nozzles, with the “coanda effect” the ionized air comes out of a slotted nozzle producing a flat jet. The special construction of the bottom-side of the Air Knife causes an unilateral reduction in injection (air suction from the atmosphere), thus creating negative pressure so that the ionized air is directed to the material web.
